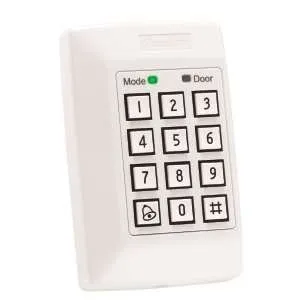

AC-115 8 Door Networkable Access Control

• 2400 users
• Quick and easy to install, All-in-One
• Supports two standard Wiegand 26-Bit readers
• (PIN only, PIN PROX, or PROX)
• Internal power supply for readers, lock and
  inputs, with a charger for external battery backup
• Real-time clock with backup battery lasts up to 10 years
• Cable-cut tamper detection function for readers
  and cover tamper detection for the main unit
• Bell, chime & alarm annunciator with audible tones
• 3 selectable security modes and 3 programmable user levels
• AC-115 can work as an independent single-door
• PIN controller and does not require the PC
• For Microsoft Windows ® 98/ME, and XP/NT/2000
• A simple and intuitive user-friendly PC interface
  reduces complexity of managing access control
• Long range RS-485 network connects to the PC using
  a MD-14 RS-232 to RS-485 converter (one per network)
• Enables management of user data, photo with
  custom fields, access rights, alarms, strike time,
  and door mode from a central location for up to 8 networked doors
• Produces reports from acquired data, such as
  entry and exit times, and by alarm type with filters
  for users, location, and time
