Product Details
＋

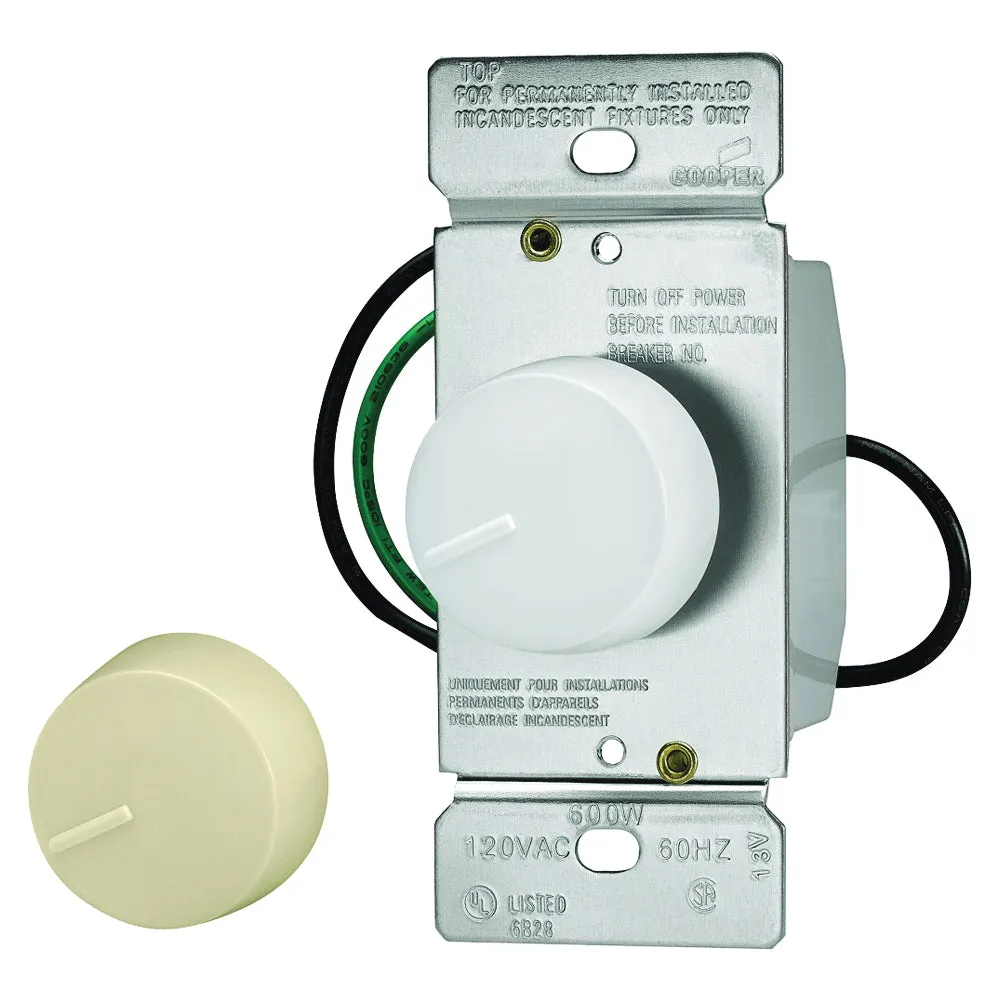

Rotary dimmers provide a smooth rotation and full range dimming for incandescent lighting. In addition, one fully variable and quiet three-speed fan speed controls are included in the product series. This line offers 1-pole (single location) units for 600 and 1000 W lamp loads along with a combined 1-pole and 3-way (multi-location) unit for 600 W lamp loads. All React rotary dimmers are compatible with any traditional-style switch, wallplate or screwless wallplate.
Product Details
Manufacturer:
Manufacturer's Part Number: RI06P-VW-K2
Show me more
Product Features
- Power failure memory
- Electrostatic discharge protection
- Neutral is not required for installation of device
- Replaces a standard switch and offers dimming capabilities
- Integrated rotary dial for On/Off and DIM/BRIGHT operation
- Fully variable fan control allows for precise fan speed setting
- Compatible with any traditional switch wallplate or screwless wallplate
- Radio frequency interference filtering for radio, audio and video equipment
- Square law dimming - perceived dimming level is proportional to the rotary position
- Preset feature allows user to return to previous light setting when turning lights on
Product Specifications
| Color | Ivory/White |
| Frequency Rating | 60 Hz |
| Lamp Type | Halogen, Incandescent |
| Material | Polycarbonate |
| Number of Poles | 1 |
| Operation Modes | 3-Way |
| Start Type | Preset |
| Temperature Rating | 0 to 40 deg C |
| Terminal Type | Lead Wire |
| Voltage Rating | 120 V |
| Wattage Rating | 600 W |
Product Documents
| Specification Sheet | |
| Instruction/Installation Manual |
