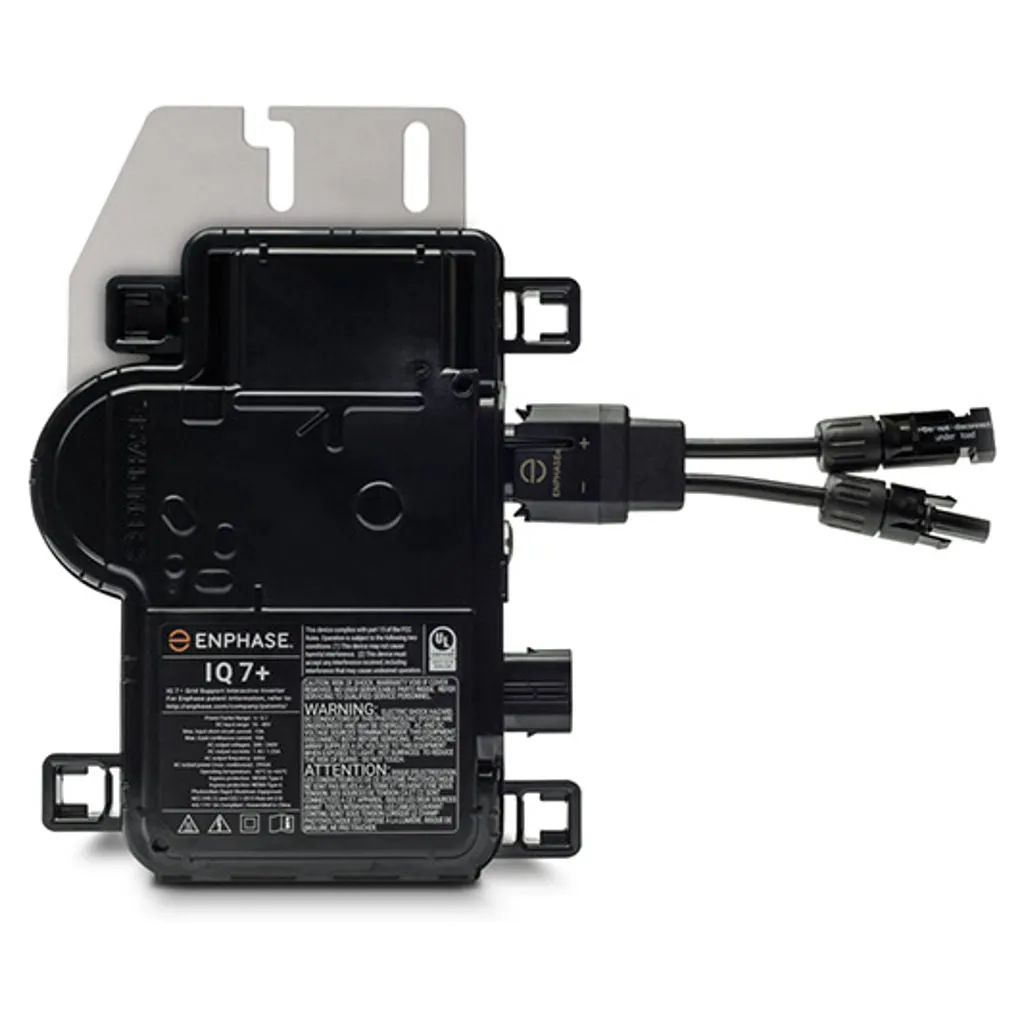

Name: Enphase Solar Microinveter IQ 7Plus ENPIQ7PLUSIND
SKU: 1092230

Product Details ＋

Product Description

The smart-grid ready Enphase IQ 7 Microinverter series is built on the seventh-generation platform and achieves the highest efficiency for module-level power electronics
Its polymeric enclosure and revolutionary cabling system simplify installation
Easy to Install
Lightweight and simple
Faster installation with improved, lighter two-wire cabling
Productive and Reliable
Optimized for high powered 72-cell modules
More than a million hours of testing
Class II double-insulated enclosure
Smart Grid Ready
Complies with advanced grid support, voltage and frequency ride-through requirements
Remotely updates to respond to changing grid requirements
Configurable for varying grid profiles

Product Specification

Brand	Enphase
Product Type	Solar Microinverter
Product Model	IQ 7
Product Code	ENPIQ7PLUSIND
Input Data (DC)	IQ7PLUS-72-2-INT
Commonly Used Module Pairings	235 W - 440 W
Module Compatibility	60-cell & 72-cell PV modules
Maximum Input DC Voltage	60
Peak Power Tracking Voltage	27 V - 45 V
Operating Range	16 V - 60 V
Min/Max Start Voltage	22 V / 60 V
Max DC Short Circuit Current (Module Isc)	15 A
Overvoltage Class DC Port	II
Dc Port Backfeed Under Single Fault	0 A
Output Data (AC)	IQ 7 Microinverter
Peak Output Power	295 VA
Maximum Continuous Output Power	290 VA
Nominal (L-N) Voltage/Range	230 V / 184-276 V
Maximum Continuous Output Current	1.26 A
Nominal Frequency	50 Hz
Extended Frequency Range	45 - 55 Hz
Maximum Units Per 20 A (L-N) Branch Circuit	13 (230 VAC)
Overvoltage Class AC Port	III
AC Port Backfeed Current	18mA
Power Factor Setting	1.0
Power Factor (Adjustable)	0.8 leading ... 0.8 lagging
Efficiency	@230 V
En 50530 (EU) Weighted Efficiency	96.5 %
Ambient Temperature Range	-40ºC to 65ºC
Warranty	As Per Manufacturer Terms and Condition
