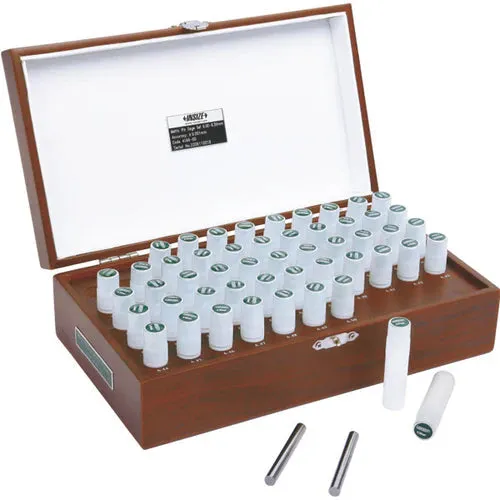

The Insize 41 Pin Gauge Set (Model: 4166-411) is a high-precision measuring tool designed for accurately checking hole sizes and dimensions within a range of 1 mm to 5 mm. This set is essential for quality control and precision measurement in various manufacturing and engineering applications.

Key Features:

• Measurement Range:
  Covers a pin gauge size range of 1 mm to 5 mm, providing flexibility for measuring different hole diameters.

• Precision Tolerance:
  Features a tolerance of ±1 μm, ensuring highly accurate measurements that are critical in precision engineering.

• Material Quality:
  Manufactured from high-quality materials with a hardness rating of HRC 62-65, offering durability and resistance to wear, making it suitable for extensive use.

• Compliance:
  Meets DIN 2267 standards, ensuring that the pin gauge set adheres to recognized quality and performance benchmarks.

• User-Friendly Design:
  Designed for easy handling and use, facilitating quick and accurate measurements in various settings.

Applications:

• Quality Control:
  Ideal for verifying hole dimensions in machined parts, ensuring they meet design specifications and tolerances.

• Manufacturing and Engineering:
  Essential for precision measurement in mechanical engineering, automotive, aerospace, and other industrial applications.

• Assembly Verification:
  Helps confirm the proper fit of components, contributing to efficient assembly processes and overall product reliability.
