Macurco CO2 Fixed Gas Detector Controller Transducer are fixed monitors providing automatic fan control to help maintain acceptable levels of Carbon Dioxide in the beverage and food industries, refrigeration, welding, greenhouses, pharmaceutical, and other chemical processing or other commercial applications. The monitor can be used as a stand-alone detector and controller and as an analog transducer for use with the DVP-120 and other systems.

Applications: Industrial Refrigeration, Warehouses, Grocery Stores, Hockey Rinks or other Commercial Refrigeration Applications

Key Features:

• Choice of Low Voltage (12-24 VAC or 12-32 VDC input) or Line Voltage (100-240 VAC input)
• Manual Calibration
• 5A SPDT Fan control relay
• 0.5A N.O. or N.C. Alarm Relay
• Selectable Fan and Alarm Relay Actuation Settings
• Digital Display (0-25% v/v O2), Internal Buzzer
• Coverage Area: 900 sq. ft.
• 4-20mA current loop
• DVP-120 compatible
• ETL Listed
• Made in the USA

Product Number:

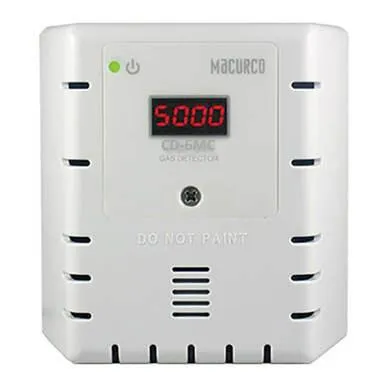

CD-6MC - Low Voltage (12-24 VAC or 12-32 VDC)

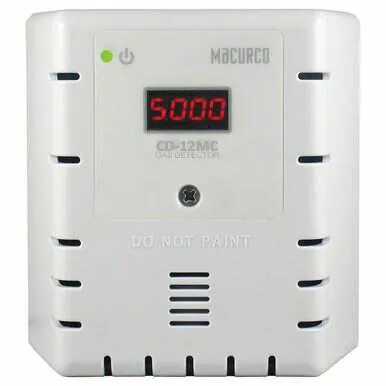

CD-12MC - Line Voltage (100-240 VAC)
