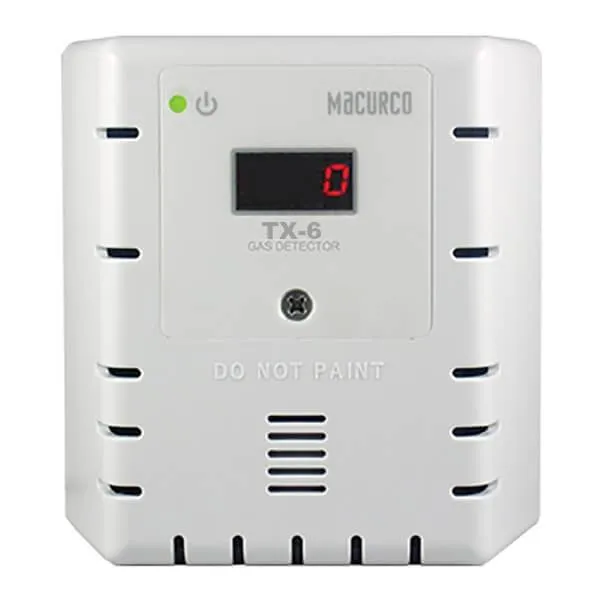

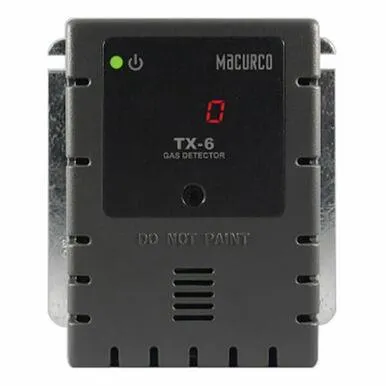

Macurco Hydrogen Sulfide Fixed Gas Detector Controller Transducer provides automatic fan control to help maintain acceptable levels of H2S in refineries, pulp and paper mills, waste disposal and other commercial facilities. The monitor can used as a stand-alone detector and controller and as an analog transducer for use with Macurco control panels and other systems.

Applications: Refineries, Pulp and Paper Mills, Waste Disposal, Sewer Gas, Swamp Gas and Manure Gas, Crude Petroleum

Key Features:

• Choice of Low Voltage (12-24 VAC or 12-32 VDC input) or Line Voltage (100-240 VAC input)
• 5A SPDT Fan control relay
• 0.5A N.O. or N.C. Alarm Relay
• Selectable Fan and Alarm Relay Actuation Settings
• Digital Display (0-25% v/v O2), Internal Buzzer
• Coverage Area: 900 sq. ft.
• 4-20mA current loop
• DVP-120 compatible
• ETL Listed
• Made in the USA

Product Number:
TX-6-HS WHITE - Low Voltage (12-24 VAC or 12-32 VDC)
TX-12-HS WHITE - Line Voltage (100-240 VAC)
