Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1029846 |
| Body Style | T-slot |
| Connection Type | Cable with M8 male connector, 4-pin, 0.3 m |
| Dropout Voltage | ≤ 2.2 V |
| Housing Material | Plastic |
| Hysteresis | 1 mT |
| IP Rating | IP67 |
| Length | 1.57" (40mm) |
| Material, Cable | PUR |
| Output | PNP |
| Output Type | NO |
| Power Dissipation | ≤ 15 mA (without load) |
| Series | |
| Supply Voltage | 12 V DC ... 30 V DC |
| Type | Magnetic Cylinder |
Overview

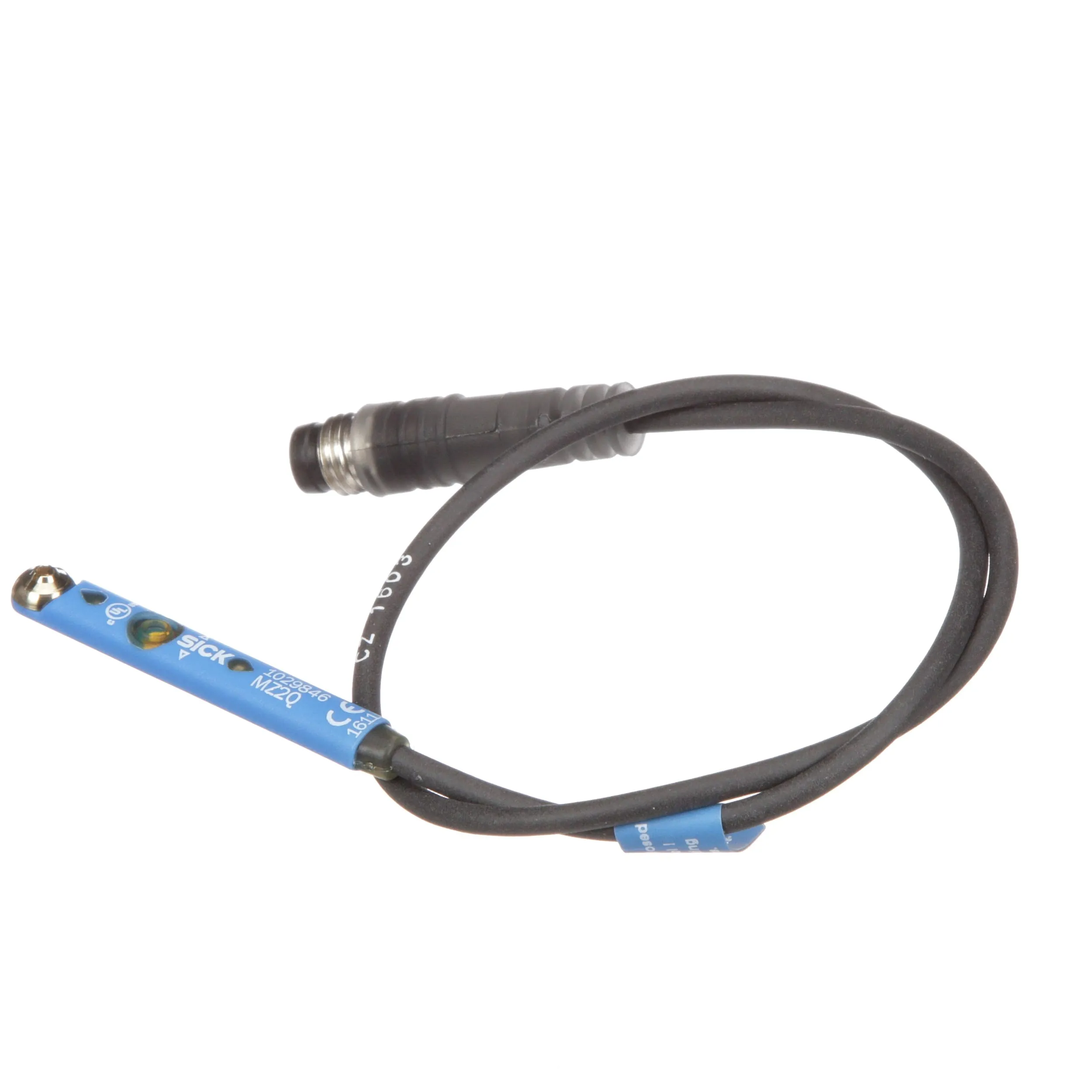

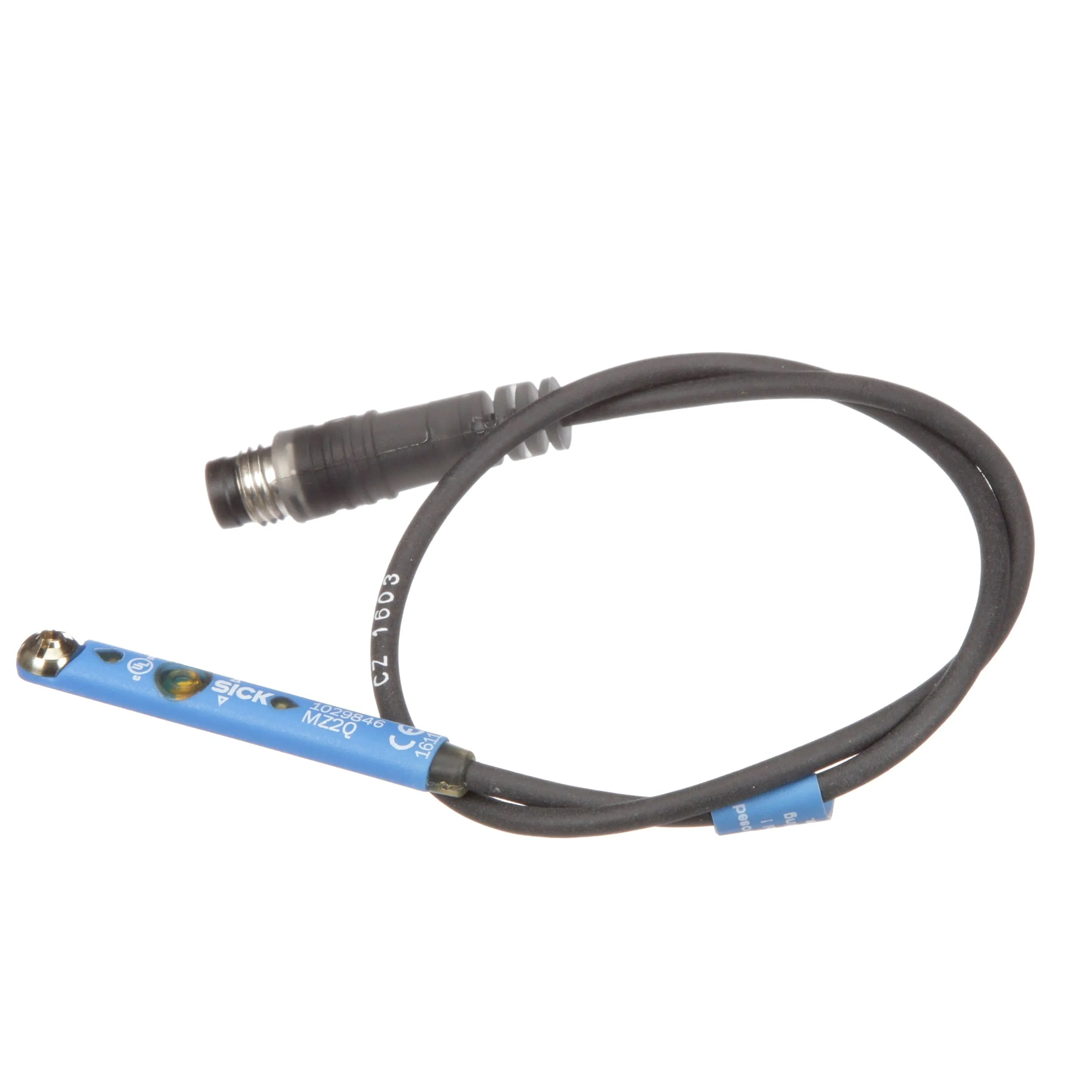

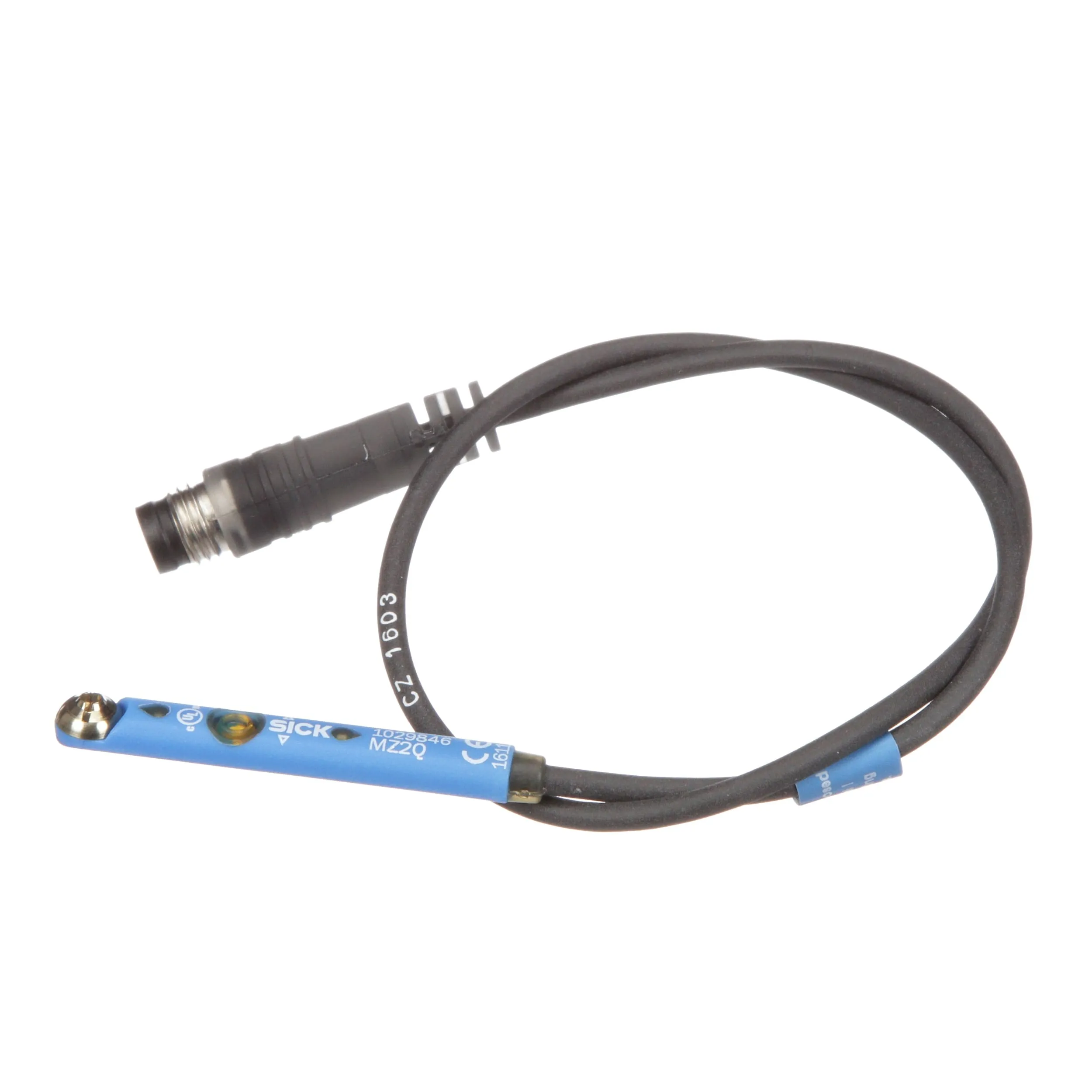

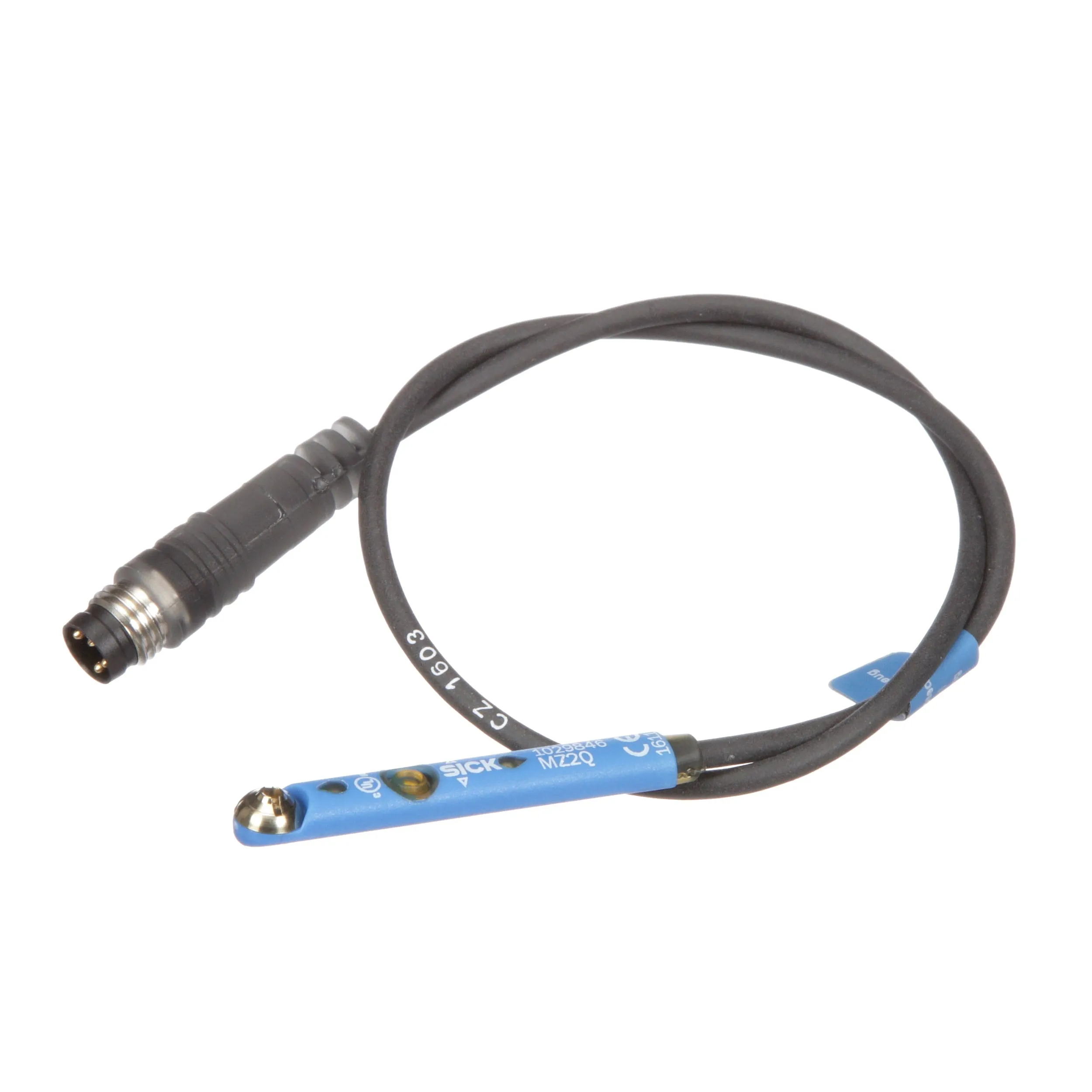

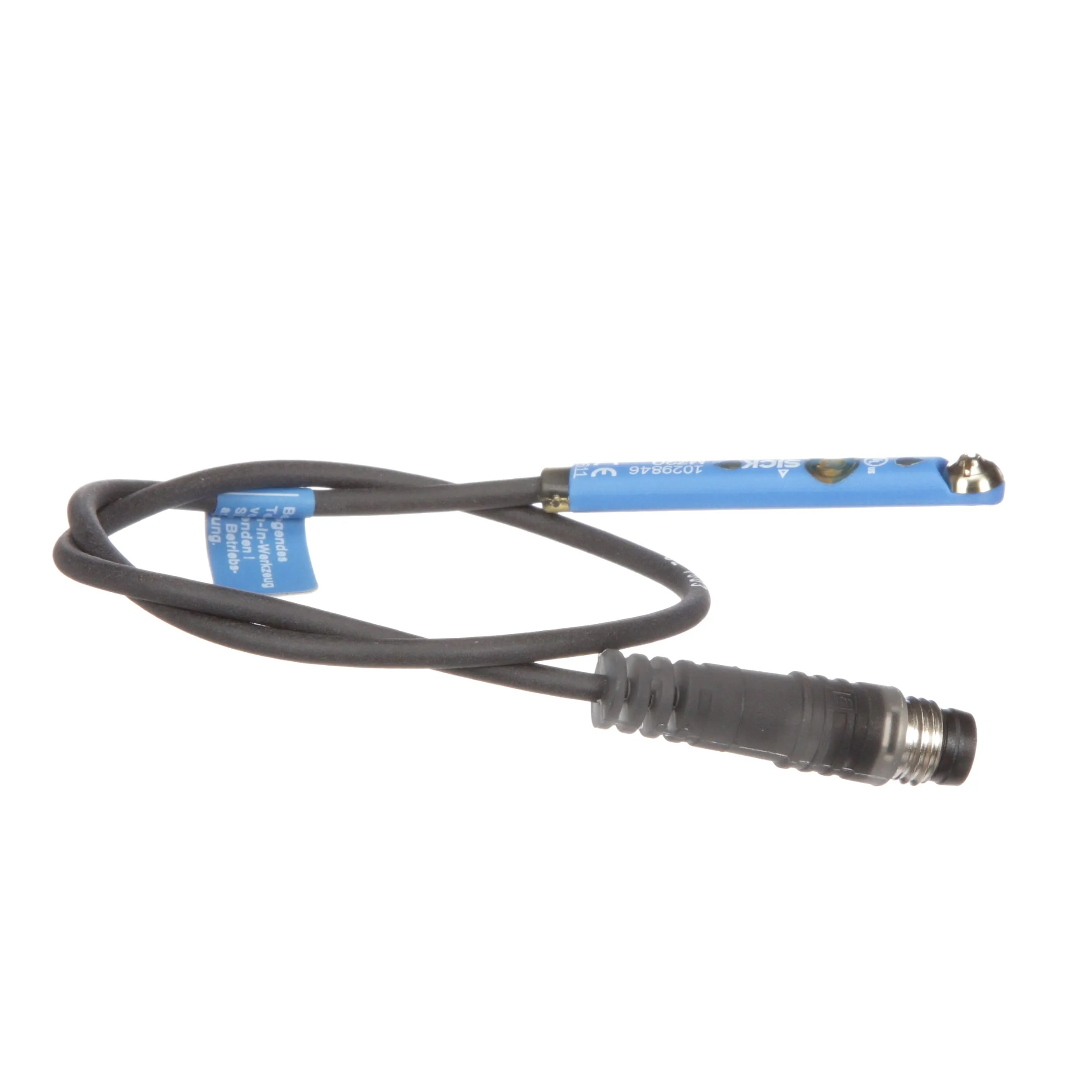

MZ2Q-T
The MZ2Q-T magnetic cylinder sensors from SICK make it possible to detect two end positions or intermediary positions on pneumatic cylinders, grippers, or slides using just one sensor. This is achieved by using two individually adjustable switching points in one sensor housing. Unlike conventional solutions, this is easier, quicker, and more economical, since only one slot is occupied. This reduces the mounting and cabling effort by half while providing an efficient application solution.
