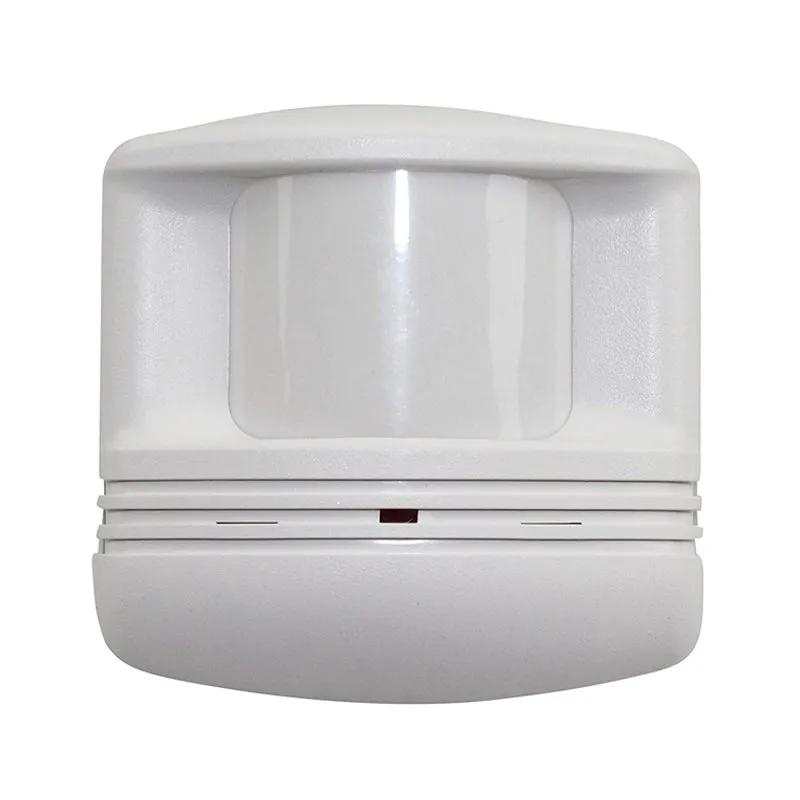

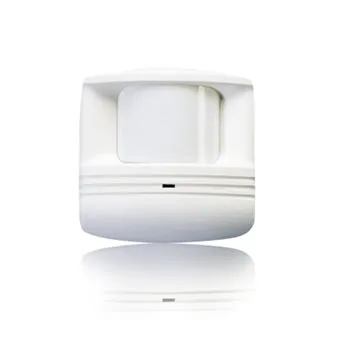

Wattstopper™s CX-100 Series Passive infrared (PIR) Ceiling/Wall Sensors detect occupancy to control lighting in a wide variety of applications. These sensors provide superior coverage and performance with great energy savings.

Features:

• Color: White
• Voltage: 24 VDC
• Current: 19 mA
• Coverage: up to 90 linear Ft, up to 120 linear Ft, up to 50 linear Ft, up to 2000 sq Ft.
• Light Output 1FCD: Automatic On/Off
• Response Time: 15 secs to 30 minutes
• Turns lights on and off based on occupancy
• User-adjustable time delay and sensitivity
• ASIC technology reduces components and provides greater reliability
• Choice of four coverages patterns
• Built-in light level sensor
• Isolated relay for use with HVAC or other control systems
• Automatic or manual-on operation when used with a BZ-150 Power Pack

Models:

CX-100-1, CX-100-3, CX-100-4
