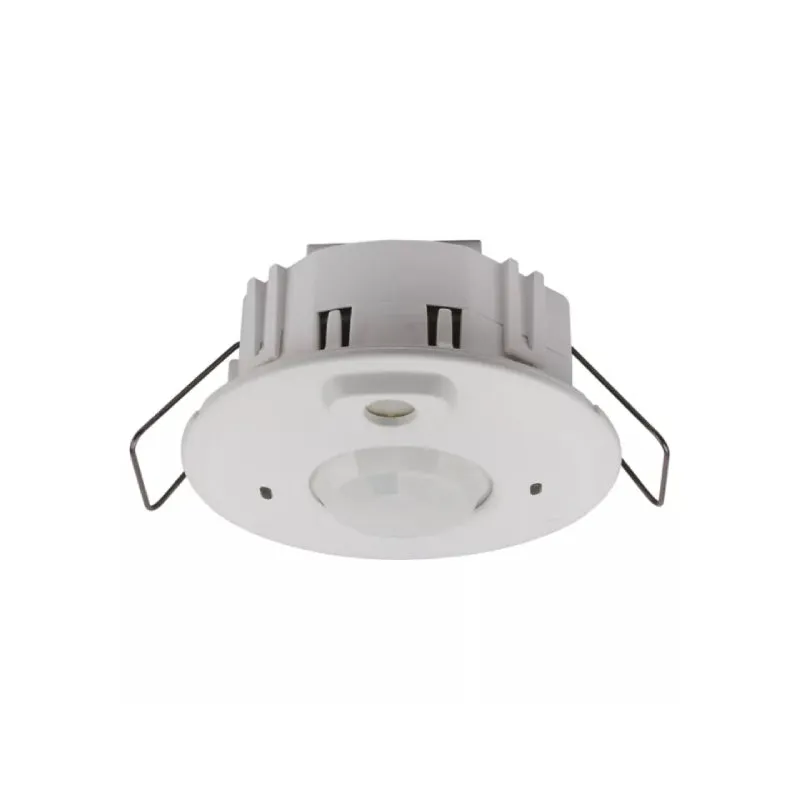

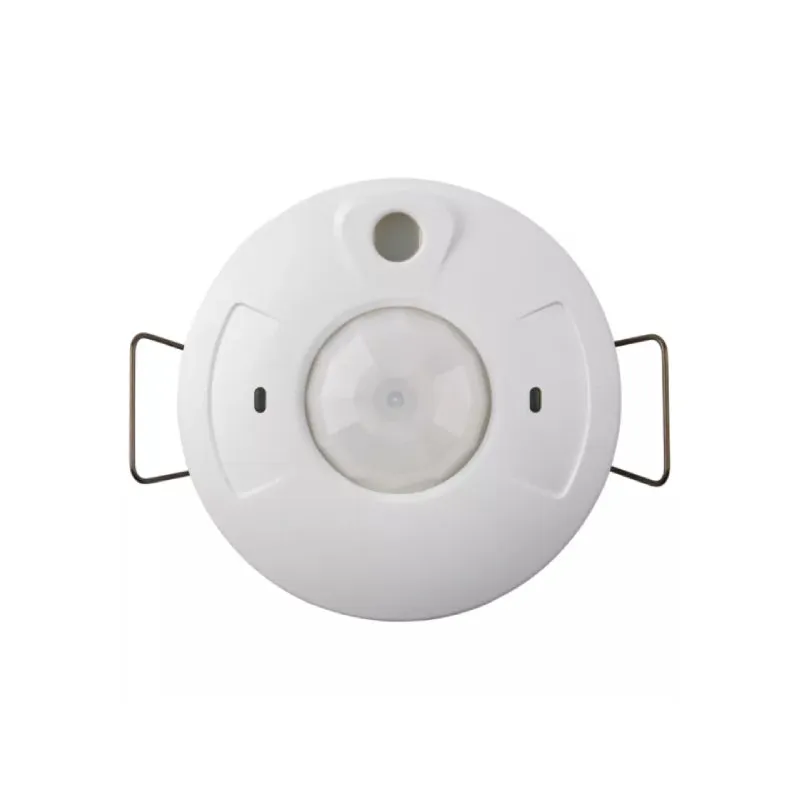

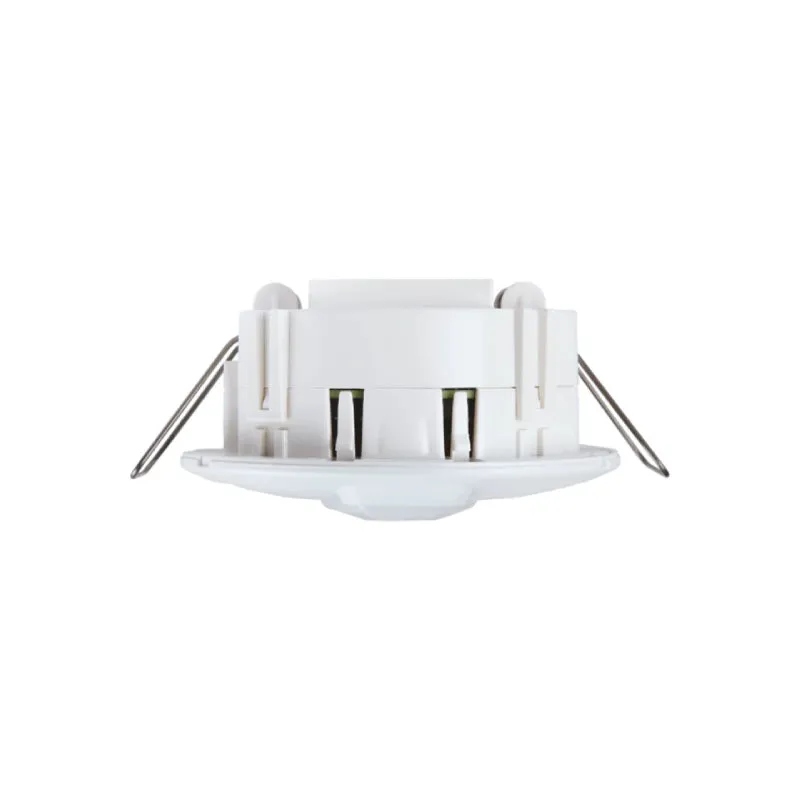

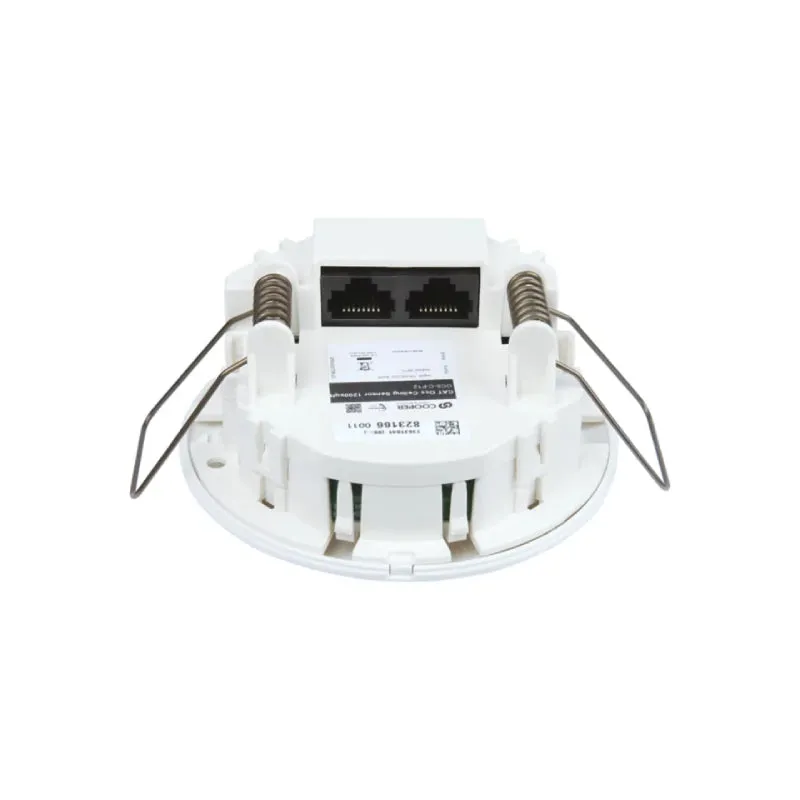

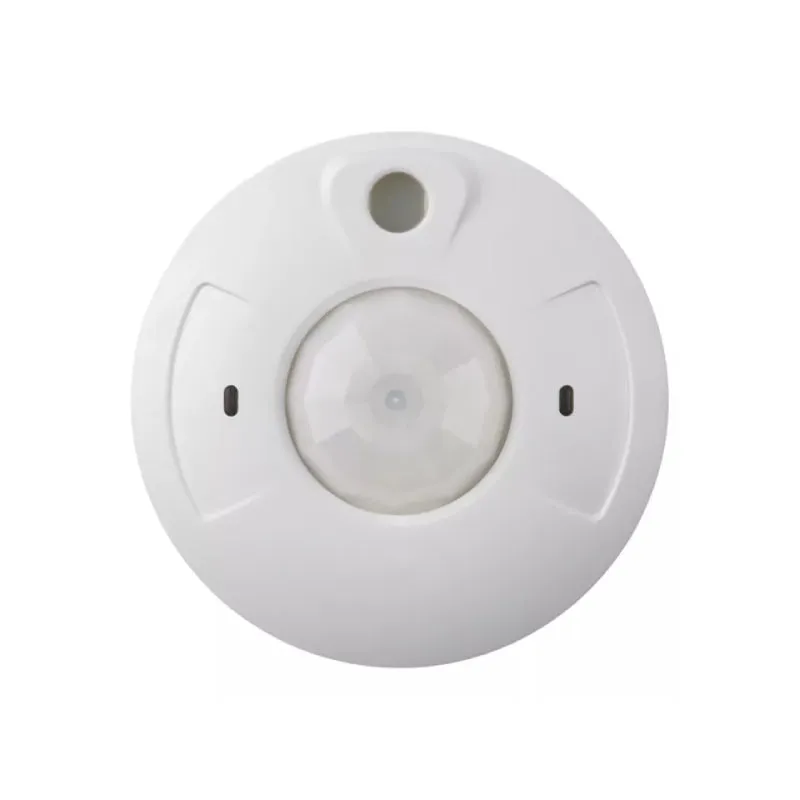

The WaveLinx CAT Occupancy Ceiling Sensor (OCS-C-P) is a digital ceiling mount device with passive infrared and photocell sensing technology. The sensor is available with two lens options. The OCS-C-P06 model has a lens that offers 600 sqft coverage when mounted between 8 to 12 ft, while the OCS-C-P12 offers 1200 sqft coverage.

Features

• Color: White
• Voltage: 9.5 - 22.5 VDC supplied by communication bus
• Coverage: 600 sq. ft.
• Occupancy Detection Technology: Passive Infrared (PIR)
• Mounting: 4" octagon junction box or 3” hole in ceiling tile

• Lens Type: Multi-level Fresnel 360°
• Daylight Sensing Range: 0 to 100 lux
• Daylight Sensing Coverage: Light input within 60° cone
• Wiring: 18 AWG stranded PTFE plenum rated

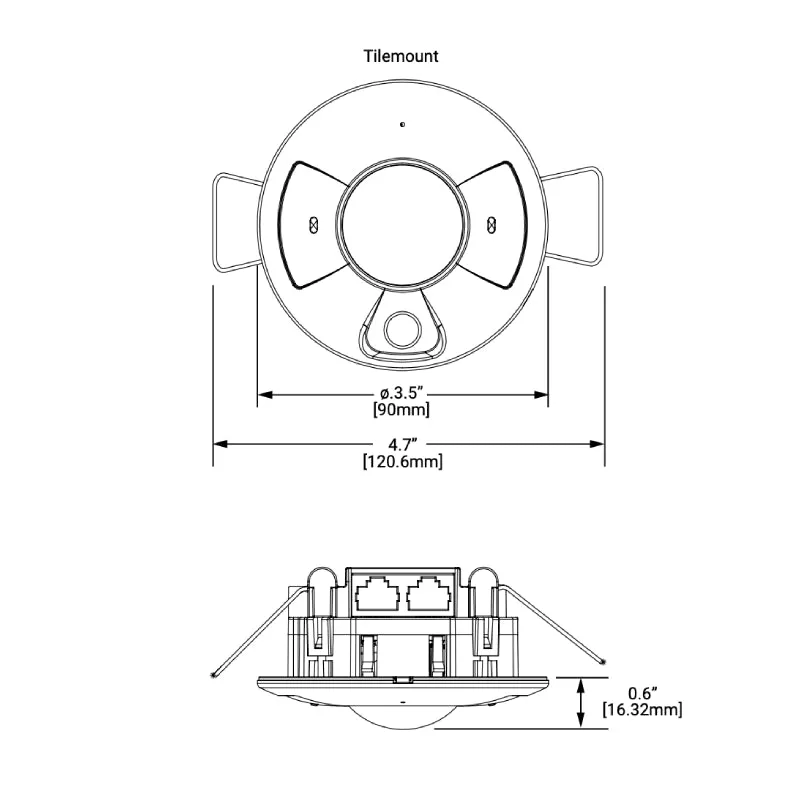

Dimension

• Diameter: 4.7"
• Height: 0.6"

Warranty

• 5-year warranty
